Precision Electronics Aluminium Solution
Precision aluminum plates for semiconductor equipment, tooling, fixtures and precision-machined components.
Precision electronics and semiconductor-related manufacturing require aluminium materials with good dimensional stability, clean surface quality, reliable machinability, and low deformation during processing. Small material variations can affect machining accuracy and final assembly quality.
Application

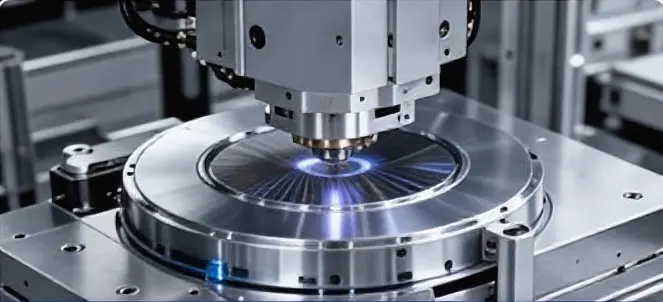

Semiconductor equipment parts

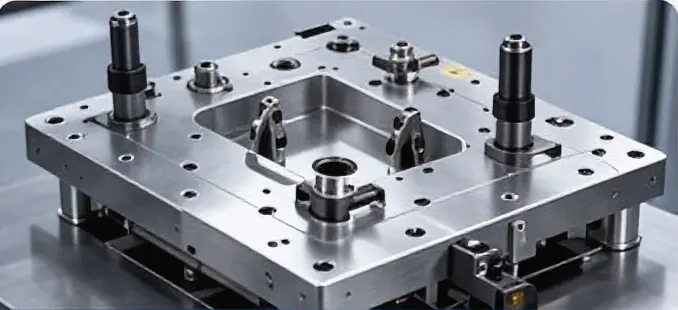

Precision CNC fixtures

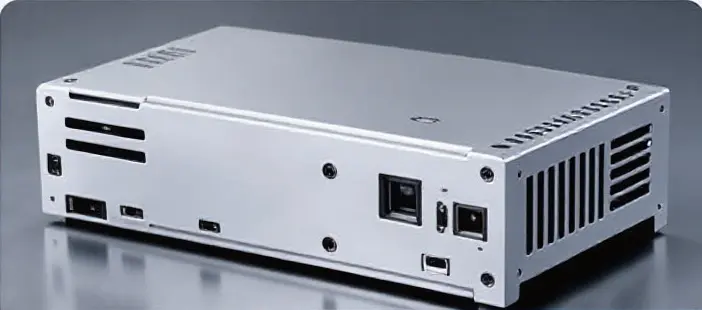

Electronic housings

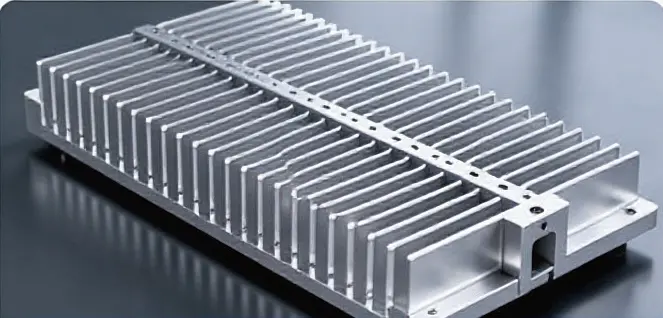

Heat dissipation plates

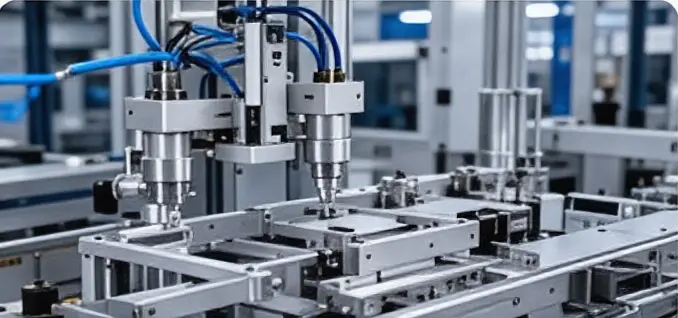

Automation equipment parts

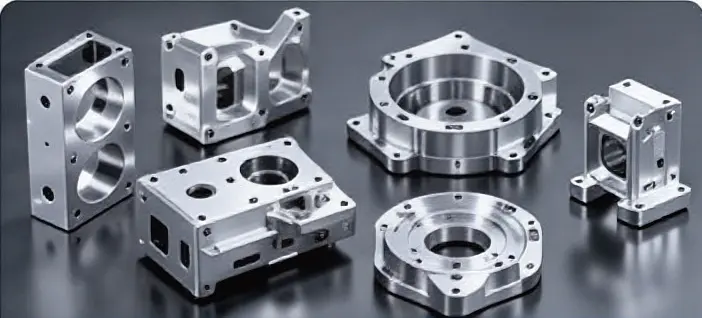

Precision machined aluminium components

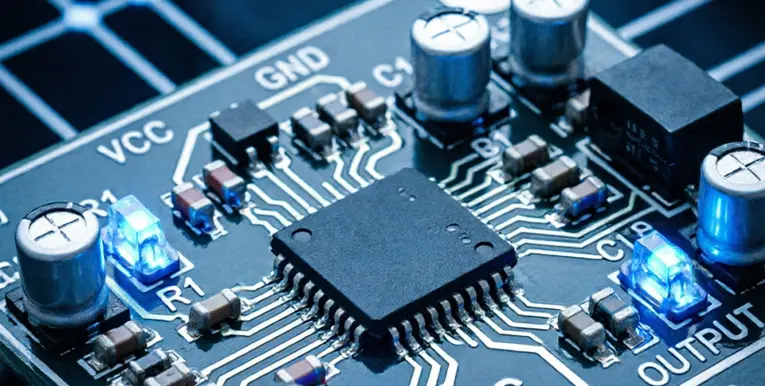

Electrical and electronic structures
Material Requirements
Tight dimensional tolerance
Good flatness
Low deformation during machining
Clean surface quality
Good thermal conductivity
Stable batch consistency
Good anodizing or surface treatment performance
Semiconductor Grade Aluminum Plate Specifications
| Item | Specification |
| Alloy | 6061 / 6061-T651 / 6082-T651 / 7075-T651 (according to application requirements) |
| Temper | T651 (Stress Relieved by Stretching) |
| Thickness | 10 mm – 150 mm (custom thickness available) |
| Width | 500 mm – 2000 mm |
| Length | 1000 mm – 6000 mm |
| Thickness Tolerance | ±0.05 mm – ±0.15 mm (depending on thickness and requirement) |
| Flatness | ≤0.3 mm/m² (precision grade available ≤0.15 mm/m²) |
| Surface Quality | Smooth mill finish; free from scratches, dents, oxidation marks, oil contamination and surface defects |
| Machinability | Excellent machinability; suitable for CNC milling, drilling, precision machining; low deformation after machining |
| Quantity / MOQ | MOQ: 4 tons (depending on alloy, size and production schedule) |
Recommended Alloy Selection for Semiconductor Applications
| Alloy | Main Advantage | Typical Application |
| 6061-T651 | Excellent balance of strength, corrosion resistance and machinability | Semiconductor equipment frames, base plates, brackets, structural parts |
| 6082-T651 | Higher strength than 6061, good machining performance | Precision mechanical components, support structures |
| 7075-T651 | Ultra-high strength, excellent rigidity | High-load precision platforms, aerospace-level semiconductor equipment parts |
| Cast Aluminum Plate | Extremely low internal stress, excellent flatness | Precision base plates, inspection platforms, vacuum equipment plates |
Key Aluminum Plate Requirements for Semiconductor Applications
Controlled Flatness
Helps maintain stable surfaces during machining and equipment assembly.
Tight Thickness Tolerance
Provides consistent material dimensions for precision machining processes.
Dimensional Stability
Supports consistent dimensions during machining and component assembly.
Reliable Machinability
Supports efficient cutting, milling, drilling and CNC machining processes.
Thermal Performance
Supports heat transfer requirements in semiconductor equipment applications.
Consistent Surface Quality
Provides controlled surface condition for machining and equipment applications.
Built for B2B Semiconductor Equipment Procurement
From material specifications to bulk delivery, we support the requirements of industrial aluminum plate procurement.
OEM & Industrial Supply
Supports bulk orders for semiconductor equipment manufacturers and industrial buyers.
Specification Matching
Matches alloy, temper, thickness, size and tolerance requirements.
Bulk Order Capability
Supports recurring and project-based orders for industrial applications.
Export-Ready Packaging
Provides protective packaging for international transportation and handling.
MOQ: 1 Ton | B2B Orders Only | Custom Specifications Welcome
